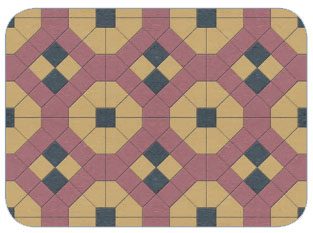

Octognal & Quadro Family:

This is known under Quadro-Oct family. These pavers generally 2 or three pavers combinations together with different colours. So very attractive designs can be developed.
The OCTOGNAL paver has 8 faces, so it is called octagonal, must lay with other pavers like square block 8×8 cm , also lays with Quadro KV, Rhombus pavers.
Quadro can lay independently, so as Rhombus, Cube pavers. Cube(8×8 cm) also can lay with some big square pavers like 20x 20, 30 x 30 etc as Square combination.
Sizes: Octognal -197 x 197 mm, Cube 80 x 80mm, Quadro KV -197x197mm, Rhombus – 197 x 119 mm

Product-Praving-Combi-Quadro-Oct

SPECIFICATIONS

SL NO PAVER TYPE THICKNESS(MM) WEIGHT/BLOCK(KG) NO. OF PIECES/SQ.M
1 QUADRO 60 197 * 137 52
80 197 * 137 52
2 OCTAGONAL 60 197 * 197 31
80 197 * 197 31
3 CUBE 60 80 * 80 156
80 80 * 80 156
4 RHOMBUS 60 197 * 119 62
80 197*119 62

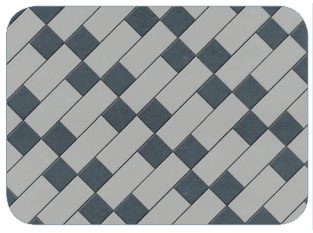

Rectangle & Square Combinations:

These BLOCKS are independently can lay with colour patterns and many designs .
2 or more blocks combinations. Recent years in UAE combination patterns (multi dimensional) are more popular. If Laying personnel good, can make as many as you can make patterns. The square/Rectangular blocks or square / square or rectangular / rectangular combinations patterns can develop.
AL MADINA Having the following sizes of Square and Rectangle blocks can supply independently, or combinations. Few designs we put in our catalogue just to get idea.

Square shape Blocks:

  1. 400 x 400 x 60 mm
  2. 300 x 300 x 60 mm
  3. 200 x 200 x 60 mm,
  4. 100 x 100 x 60 mm

Rectangular:

  1. 400 x 200 × 60 mm
  2. 200 x 300 x 60 mm,
  3. 150 x 300 x 60 mm,
  4. 200 x 100 x 60 mm

Product-Praving-Combi-Rect-Square-Combi

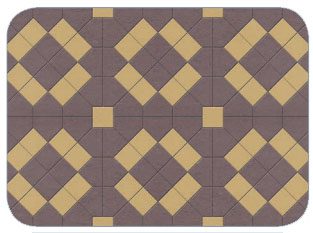

Lalinia Family:

The above two pavers are Magical shapes,surprisingly we can make hundreds of patterns by just two shapes, None of the pavers has this many, just use different colours, then patterns numbers also goes in multiples.

In Lalinia family includes other sizes also like square 10×10 cm, Rectangle 20×30 cm etc.

Product-Praving-Combi-Lalinia

Monaco Family:

These pavers combination pattern popular and approved in ADNOC petrol Stations, UAE. But these pavers popular in Europe and other parts of the world with many designs. As ADNOC stations, for vehicles designated area, so 80 mm thickness use, Al MADINA interlock, producing and supplying many private villa projects.

Product-Praving-Combi-Monaco
